System · Steel scaffolding

Modular steel scaffolding for façade, loading and support.

Ringlock, cuplock, H-frame and tube-and-fitting components engineered for façade access, loading bays, stair towers and heavy support scaffolds.

Request proposal Technical resources
Close view of a ringlock connection on a steel scaffold
Overview

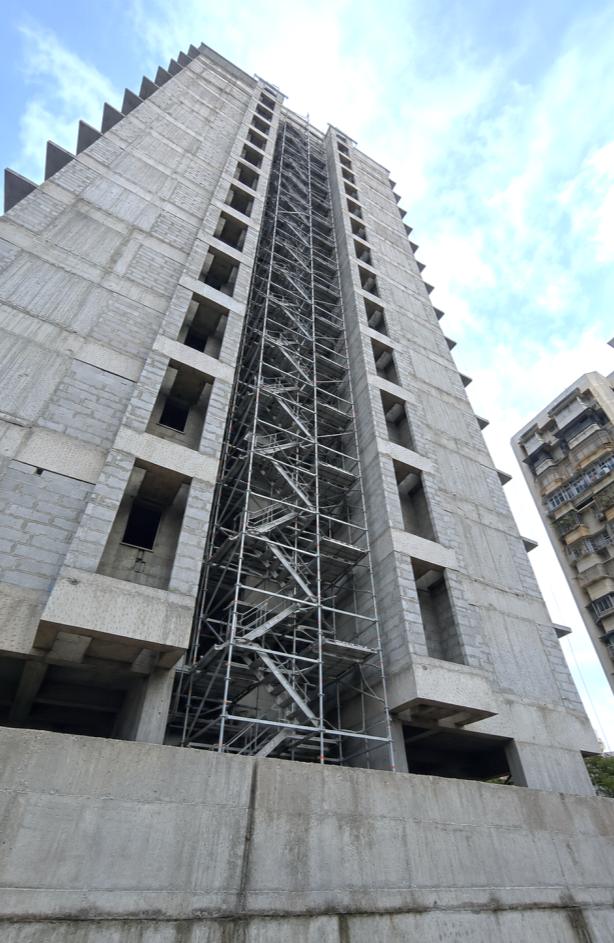

Steel scaffolding forms the backbone of most façade access, loading, temporary support and industrial-maintenance solutions. Ringlock is the primary system for repetitive, quickly-erected access; cuplock, H-frame and tube-and-fitting cover legacy and heavy applications.

Schach supplies galvanised components with published codes and dimensional data, plus design support for non-standard bays, loading bays, cantilever brackets and stair-access towers.

Key benefits
  • 01

    Rapid erection

    Ringlock rosette geometry allows up to eight connections per node with a single hammer strike.

  • 02

    System interoperability

    Standardised bay sizes and heights simplify inventory management and reuse across projects.

  • 03

    Heavy load capacity

    Support and loading configurations engineered against project-specific loading and stability requirements.

  • 04

    Traceable components

    Galvanised steel components with published codes, dimensional data and controlled inspection.

System anatomy

Principal components across a typical configuration.

  • 01
    Standard (vertical)
  • 02
    Ledger (horizontal)
  • 03

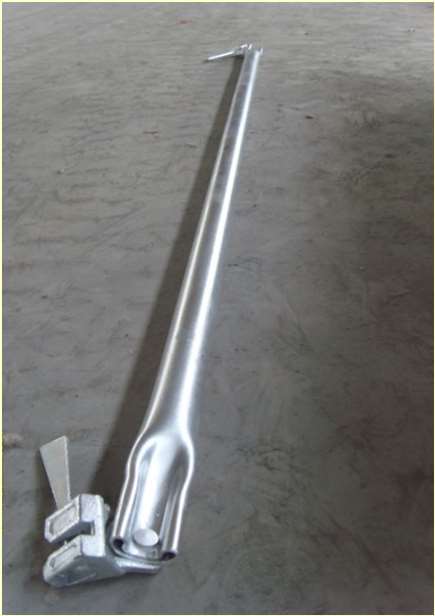

    Diagonal brace
  • 04
    Rosette (node)
  • 05
    Spigot
  • 06
    Base collar
  • 07
    Adjustable base jack
  • 08
    U-head jack
  • 09
    Steel platform / plank
  • 10
    Toe board
  • 11
    Cantilever bracket
  • 12

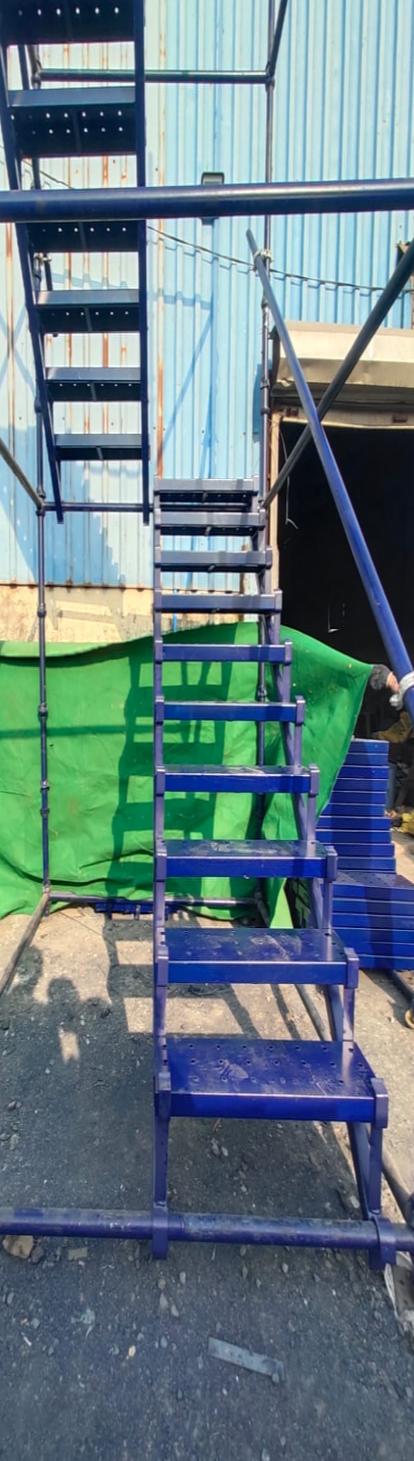

    Stair unit
Technical specification
Primary system
Ringlock — rosette node
Material
Structural steel, hot-dip galvanised
Node capacity
Up to 8 connections per rosette
Bay heights (standards)
0.5 / 1.0 / 1.5 / 2.0 / 3.0 m (typical)
Bay lengths (ledgers)
0.4 / 0.7 / 1.0 / 1.4 / 1.8 / 2.1 / 2.4 / 3.0 m (typical)
Availability
Sale and hire
CodeComponentConfiguration
RL-STD-3000Standard 3.0 m48.3 × 3.2 mm, HDG
RL-STD-2000Standard 2.0 m48.3 × 3.2 mm, HDG
RL-LED-2100Ledger 2.1 mRing-end horizontal, HDG
RL-DIA-2100Diagonal 2.1 × 2.0 mVertical face brace, HDG
RL-BJK-600Base jack 600 mmAdjustable, plated base
RL-CBR-500Cantilever bracket 500 mmSide extension bracket
Design & engineering support

What to send us.

To scope the system accurately, our engineers work from the following information:

  • Elevation drawings and building geometry
  • Applied loads (working, storage, wind, imposed)
  • Tie points and fixing capacity
  • Access & egress requirements
  • Sequence of erection / dismantle
  • Duration and inspection regime
Safety & compliance

HSE guidance states that system scaffolds should follow recognised configurations or manufacturer instructions; otherwise bespoke calculations by a competent person are required. Non-standard bays, loading bays, cantilevers and support scaffolds are engineered per project.

All components are supplied with material specification, dimensional data and galvanising details. Applicable standards are stated on the technical proposal.

Downloads

Current controlled documents. Contact us for CAD/BIM files.

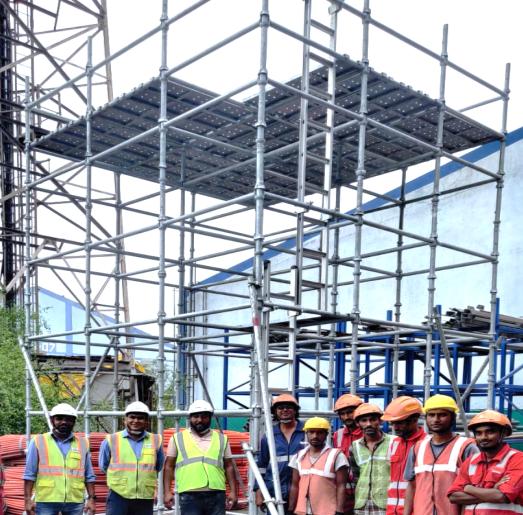

Typical applications
  • Façade access
  • Loading bays

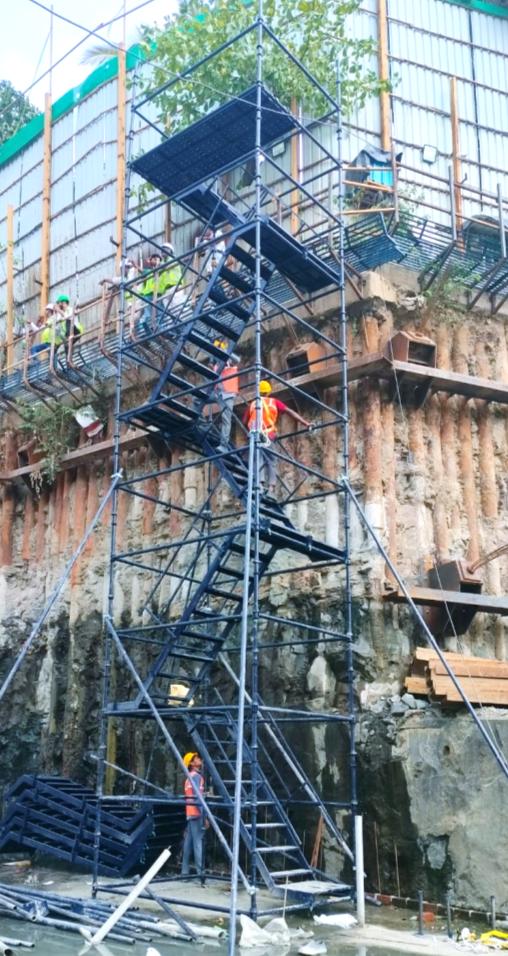

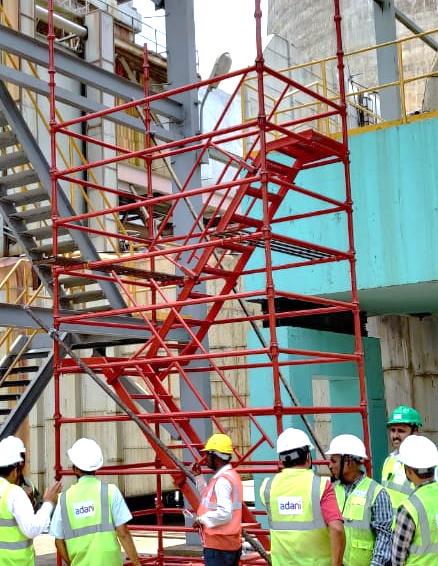

  • Stair towers

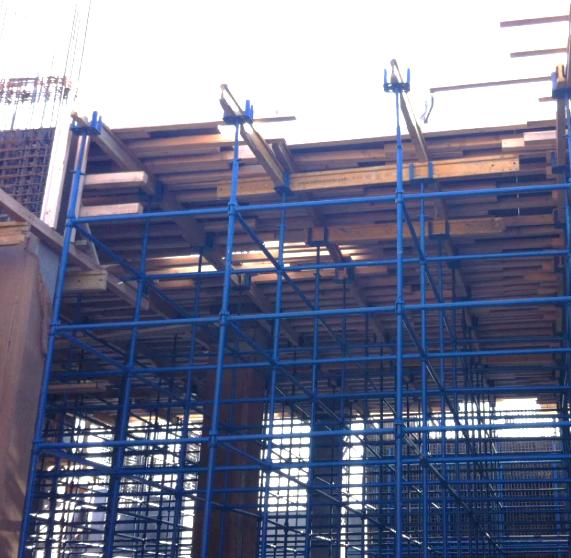

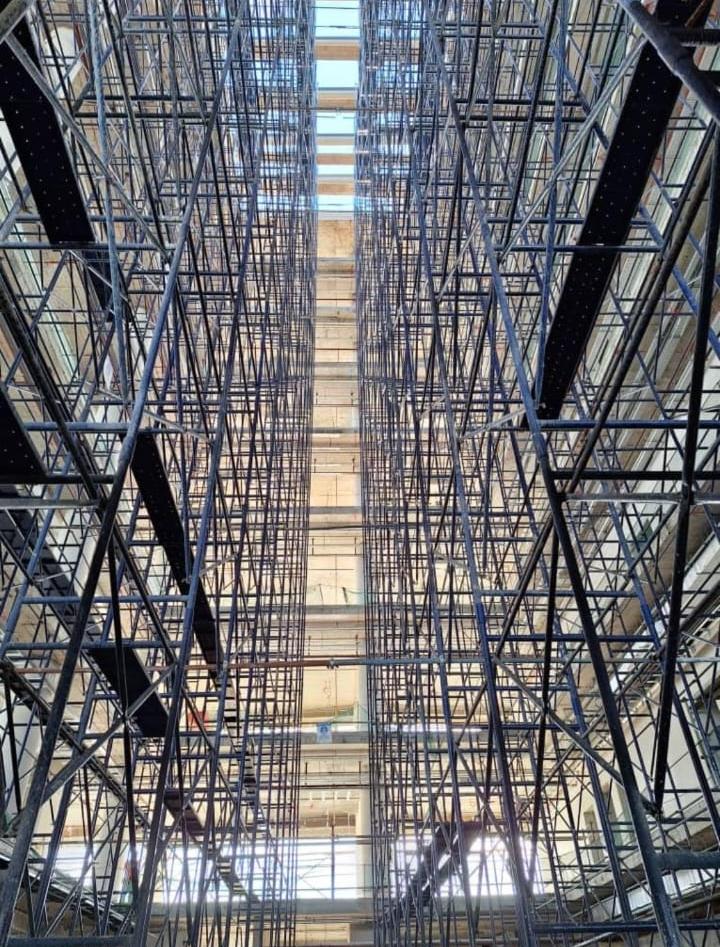

  • Support scaffolds
  • Industrial maintenance
  • Cantilever & bespoke bays
Start a project

Bring us the drawings.

Share the project information and Schach Systems will identify the appropriate system, configuration and next technical step.

Send Project Brief
